MOQ:	1 set
Price:	Negotiation
Standard Packaging:	Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period:	5-10 working days
Payment Method:	T/T, PayPal, Western Union
Supply Capacity:	10000pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, China

Brand Name

Hontru

Certification

CE ISO RoHS

Model Number

HC86BLF

Document

Product Brochure PDF

Name:

HC57BLY Series Brushless Reduction Motor

Gearbox Housing Material:

Metal

Backlash:

≤1.2°

Radial Clearance:

≤0.05mm

Axial Clearance::

≤0.3mm

Highlight:

BLDC motor Nema23

57mm Brushless DC Motor

geared bldc motor

Product Description

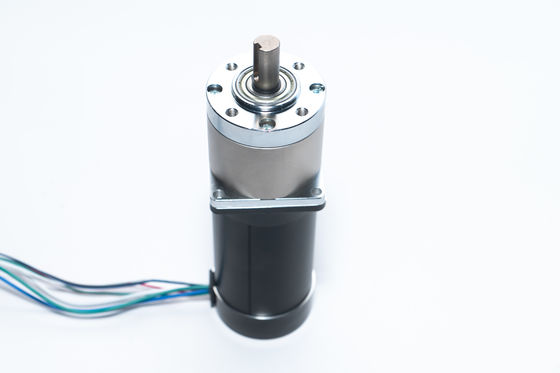

HC57BLY Series Brushless Reduction Motor 57mm Round Brushless Reduction Motor

1. Gearbox housing material: metal
2. Backlash: ≤1.2°
3. Radial clearance: ≤0.05mm
4. Axial clearance: ≤0.3mm
5. The allowable torque of the gearbox must not be exceeded during use

Gearbox technical parameters:

Reduction ratio	Rated allowable torque(N.m) (N.m)	Instantaneous maximum torque(N.m)	efficiency(%)	Box lengthL1(mm) L1(mm)	Level grade
3.6,4.3	5	15	90%	38.3	1
13,19,22	20	60	81%	52.2	2
46,69,102, 121	20	60	73%	66.1	3
198,276,326 , 409 513	20	60	65%	80	4

Motor technical parameters:

Motor model	HC57BLY47	HC57BLY52	HC57BLY62	HC57BLY72	HC57BLY92	HC57BLY112
Number of poles	4	4	4	4	4	4
Number of phases	3	3	3	3	3	3
Rated voltage (VDC)	24	24	24	24	24	24
Rated speed (rpm)	3000	3000	3000	3000	3000	3000
Rated torque (N.m)	0.07	0.11	0.18	0.22	0.33	0.45
Rated current (A)	1.5	2	3.5	4	6	8
Rated power (W)	25	41	57	79	110	140
Body length L (mm)	47	52	62	72	92	112
Weight (kg)	0.33	0.45	0.65	0.8	0.95	1.2

Outline:

Geared Bldc Motor Nema23 Round 57mm Brushless 0
