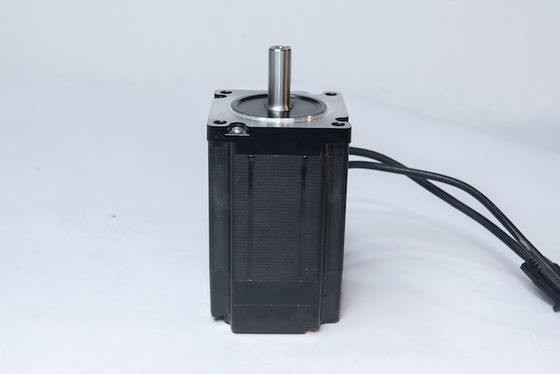

BLDC 86mm Square Flange Brushless DC Motor 12 Slots 110W 48V
  • name
  • name

BLDC 86mm Square Flange Brushless DC Motor 12 Slots 110W 48V

MOQ: 1 set
Price: Negotiation
Standard Packaging: Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period: 5-10 working days
Payment Method: T/T, PayPal, Western Union
Supply Capacity: 10000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
Changzhou, China
Brand Name
Hontru
Certification
CE ISO RoHS
Model Number
HC86BLF
Document
Product Brochure PDF
Name:
86mm Square Brushless Motor 12 Slots
Number Of Poles:
8
Number Of Phases:
3
Rated Voltage (VDC):
48
Rated Speed (rpm):
3000
Winding Method:
Y
Hall Distribution Angle:
120°
Insulation Level:
B
Insulation Resistance:
100MΩ Min.500VDC
Dielectric Strength:
600VAC,1Min.
Maximum Radial Load:
220N
Maximum Axial Load:
60N
Highlight:

110W Brushless Motor

,

Brushless DC Motor 48V

,

Brushless DC Motor 12 slots

Product Description

86mm Square Brushless Motor 12 slots



Specification



Item index parameter
Winding method Y
Hall distribution angle 120°
Insulation level B
Insulation resistance 100MΩ Min.500VDC
Dielectric strength 600VAC,1Min.
Maximum radial load 220N
Maximum axial load 60N







Wiring
Function Definition Color Wire Gauge
+5V Red







AWG26 UL1430
Hu White
Hv Blue
Hw Green
GND Black
U White



AWG22 UL1430
V Blue
W Green



Motor model HC86BLF70 HC86BLF83 HC86BLF110 HC86BLF125 HC86BLF140
Number of poles 8
Number of phases 3
Rated voltage (VDC) 48
Rated speed (rpm) 3000
Rated torque (N.m) 0.35 0.7 1.4 1.8 2.5
Rated current (A) 4 7 11 15 19
Rated power (W) 110 220 440 660 750
Peak torque (N.m) 1.05 2.1 4.2 6.3 7.5
Peak current (A) 12 21 33 57 57
Back EMF constant (Vrms/Krpm) 10.5 11.5 13.5 11.5 12
Torque constant (N.m/A) 0.1 0.11 0.13 0.13 0.13
Moment of inertia (g.cm2) 400 800 1600 2400 3200
Body length L (mm) 70 83 110 125 140
Weight (kg) 1.5 1.85 2.6 3.3 4





  Outline:

      BLDC 86mm Square Flange Brushless DC Motor 12 Slots 110W 48V 0
