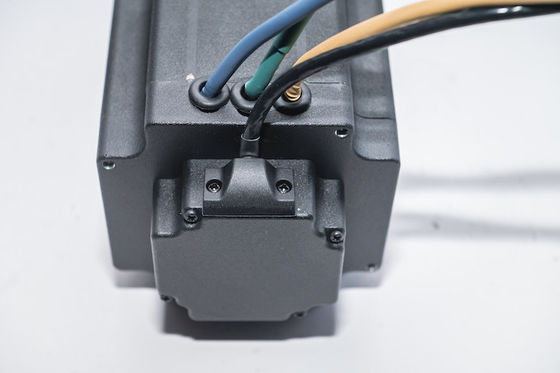

24V 600W 110mm Square Brushless DC Motor 3000rpm 48V
  • name
  • name

24V 600W 110mm Square Brushless DC Motor 3000rpm 48V

MOQ: 1 set
Price: Negotiation
Standard Packaging: Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period: 5-10 working days
Payment Method: T/T, PayPal, Western Union
Supply Capacity: 10000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
Changzhou, China
Brand Name
Hontru
Certification
CE ISO RoHS
Model Number
HC86BLF
Document
Product Brochure PDF
Name:
110mm Square Brushless Motor
Number Of Poles:
3
Number Of Phases:
8
Rated Voltage (VDC):
310
Rated Speed (rpm):
3000
Winding Method:
Y
Hall Distribution Angle:
120°
Insulation Level:
B
Insulation Resistance:
100MΩ Min.500VDC
Dielectric Strength:
600VAC,1Min.
Maximum Radial Load:
220N
Maximum Axial Load:
60N
Highlight:

110mm Square Brushless DC Motor 3

,

600W Square Brushless DC Motor 3

,

brushless motor 600w

Product Description

110mm Square Brushless Motor



Specification



Item index parameter
Winding method Y
Hall distribution angle 120°
Insulation level B
Insulation resistance 100MΩ Min.500VDC
Dielectric strength 1500VAC,1Min.
Maximum radial load 600N
Maximum axial load 180N







Wiring
Function Definition Color Wire Gauge
+5V Red







AWG26 UL1430
Hu White
Hv Blue
Hw Green
GND Black
U White



AWG22 UL1430
V Blue
W Green



Motor model HC110BLF155 HC110BLF180 HC110BLF198 HC110BLF220
Number of poles 3
Number of phases 8
Rated voltage (VDC) 310
Rated speed (rpm) 3000
Rated torque (N.m) 4 6 8 9.5
Rated current (A) 3.5 5 7 9
Rated power (W) 1200 1800 2500 3000
Peak torque (N.m) 12 18 24 28.5
Peak current (A) 10.5 15 21 18
Back EMF constant (Vrms/Krpm) 77.5 77.5 77.5 77.5
Torque constant (N.m/A) 0.74 0.74 0.74 0.74
Moment of inertia (g.cm2) 120 180 240 300
Body length L (mm) 155 180 198 220
Weight (kg) 4.5 5.5 6.5 7.5







  Outline:

    24V 600W 110mm Square Brushless DC Motor 3000rpm 48V 0
