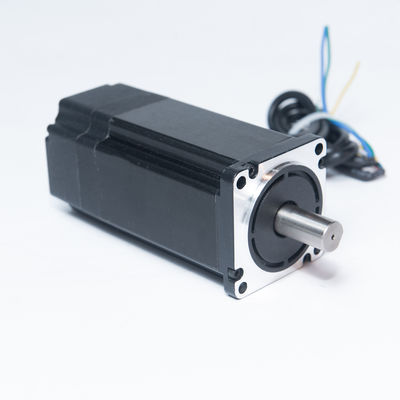

BLDC 60mm Brushless DC Motor 48V 400W 3000rpm Square Flange .
  • name
  • name

BLDC 60mm Brushless DC Motor 48V 400W 3000rpm Square Flange .

MOQ: 1 set
Price: Negotiation
Standard Packaging: Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period: 5-10 working days
Payment Method: T/T, PayPal, Western Union
Supply Capacity: 10000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
Changzhou, China
Brand Name
Hontru
Certification
CE ISO RoHS
Model Number
HC57BLY
Document
Product Brochure PDF
Name:
60mm Square Brushless Motor
Number Of Poles:
3
Number Of Phases:
8
Rated Voltage (VDC):
24
Rated Speed (rpm):
3000
Winding Method:
Y
Hall Distribution Angle:
120°
Insulation Level:
B
Insulation Resistance:
100MΩ Min.500VDC
Dielectric Strength:
600VAC,1Min.
Maximum Radial Load:
28N
Maximum Axial Load:
10N
Highlight:

60mm Brushless DC Motor

,

Brushless DC Motor 48V

,

48v bldc motor

Product Description

60mm Square Brushless Motor



Specification





Item index parameter
Winding method Y
Hall distribution angle 120°
Insulation level B
Insulation resistance 100MΩ Min.500VDC
Dielectric strength 600VAC,1Min.
Maximum radial load 75N
Maximum axial load 15N



Wiring
Function Definition Color Wire Gauge
+5V Red







AWG26 UL1430
Hu White
Hv Blue
Hw Green
GND Black
U White



AWG22 UL1430
V Blue
W Green





Motor model HC60BLF78 HC60BLF100 HC60BLF120 HC60BLF140
Number of poles 3
Number of phases 8
Rated voltage (VDC) 24
Rated speed (rpm) 3000
Rated torque (N.m) 0.25 0.5 0.75 1
Rated current (A) 4.3 8.7 13 22
Rated power (W) 78 157 235 315
Peak torque (N.m) 0.75 1.5 2.25 3.91
Peak current (A) 12.9 26 39 66
Back EMF constant (Vrms/Krpm) 6 6 6 6
Torque constant (N.m/A) 0.057 0.057 0.057 0.057
Moment of inertia (g.cm2) 150 200 250 300
Body length L (mm) 78 100 120 140
Weight (kg) 0.85 1.25 1.7 2.2





  Outline:

     BLDC 60mm Brushless DC Motor 48V 400W 3000rpm Square Flange . 0

Tags:

brushless dc gear motor,

brushless gear motor,

brushless planetary gear motor
