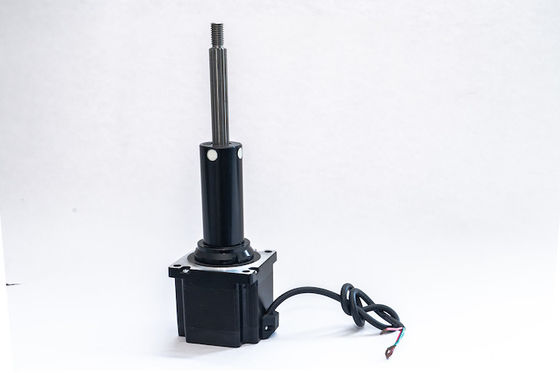

Name: Geared Gearbox Nema 34 Stepper Motor 86mm 8.5N.M 4.9A
Brand: changzhou hontru motor co.ltd
SKU: 86mm Linear Stepper Motor
Availability: InStock

MOQ:	1 set
Price:	Negotiation
Standard Packaging:	Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period:	5-10 working days
Payment Method:	T/T, PayPal, Western Union
Supply Capacity:	10000pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, China

Brand Name

Hontru

Certification

CE ISO RoHS

Model Number

86mm Linear Stepper Motor

Document

Product Brochure PDF

Name:

86mm Linear Stepper Motor

Phase Number:

Step Angle Accuracy IP Rating:

±5%

Certification:

Insulation Level:

RoHS CE ISO9001 B(130℃)

Operating Ambient Temperature:

-20℃~ +50℃

Highlight:

nema 34 geared stepper motor

8.5N.m Stepper Motor

Nema 34 86mm Gearbox Stepper Motor

Product Description

86mm Linear Stepper Motor

Phase number	2
Step angle accuracy IP rating	±5%
Certification	40
Insulation level	RoHS CE ISO9001 B(130℃)
Operating ambient temperature	-20℃~ +50℃

Motor parameters

Motor Type	Body L(mm)	Holding torque(N.m)	Rated current(A)	Resistance(Ω)	Rated inductance(mH)	Rated voltage(V)
86	76mm	4.5	6A	0.5Ω	5.6mH	3V
	114mm	8.5	6A	0.79Ω	10mH	4.74V

Screw parameters :

diameter(mm)	Screw diameter(inch)	Lead(mm)	Lead(inch)	Step Length 1.8°(°)	Nut axial clearance
15.875	15.875	2.54	0.1	0.0005	0.02-0.03mm
15.875	15.875	3.175	0.125	0.0006	0.02-0.03mm
15.875	15.875	5.08	0.2	0.001	0.02-0.03mm
15.875	15.875	6.35	0.25	0.0013	0.02-0.03mm
15.875	15.875	12.7	0.5	0.0025	0.02-0.03mm
15.875	15.875	25.4	1	0.005	0.02-0.03mm

Dimensions

Geared Gearbox Nema 34 Stepper Motor 86mm 8.5N.M 4.9A 0

Screw Type

Geared Gearbox Nema 34 Stepper Motor 86mm 8.5N.M 4.9A 1

Dynamic thrust curve

Geared Gearbox Nema 34 Stepper Motor 86mm 8.5N.M 4.9A 2
