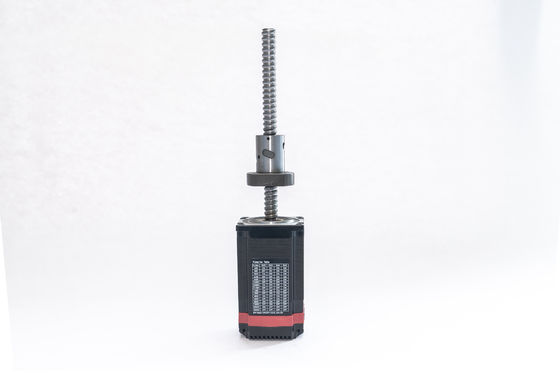

Name: High Torque NEMA 23 Hybrid Stepper Motor Integrated 57mm
Brand: changzhou hontru motor co.ltd
SKU: 57mm Linear Stepper Motor
Availability: InStock

MOQ:	1 set
Price:	Negotiation
Standard Packaging:	Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period:	5-10 working days
Payment Method:	T/T, PayPal, Western Union
Supply Capacity:	10000pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, China

Brand Name

Hontru

Certification

CE ISO RoHS

Model Number

57mm Linear Stepper Motor

Document

Product Brochure PDF

Name:

57mm Linear Stepper Motor

Phase Number:

Step Angle Accuracy IP Rating:

±5%

Certification:

Insulation Level:

RoHS CE ISO9001 B(130℃)

Operating Ambient Temperature:

-20℃~ +50℃

Highlight:

High torque NEMA 23 hybrid stepper

nema 23 integrated stepper motor

NEMA 23 hybrid stepper motor 57mm

Product Description

57mm Linear Stepper Motor

Phase number	2
Step angle accuracy IP rating	±5%
Certification	40
Insulation level	RoHS CE ISO9001 B(130℃)
Operating ambient temperature	-20℃~ +50℃

Motor parameters

Motor Type	Body L(mm)	Holding torque(N.m)	Rated current(A)	Resistance(Ω)	Rated inductance(mH)	Rated voltage(V)
57	45mm	0.7	3A	0.75Ω	0.72mH	2.25V


	55mm	0.9	3A	0.92Ω	4.5mH 3.3mH	2.76V
	65mm	1.5	4A	0.78Ω		3.12V
	75mm	1.8	4A	0.95Ω	4.5mH	3.8V
	84mm(except through)	2.2	4A	0.97Ω	7mH	3.88V
	100mm(except through)	2.5	5A	0.7Ω	3.2mH	3.5V

Screw parameters :

diameter(mm)	Screw diameter(inch)	Lead(mm)	Lead(inch)	Step Length 1.8°(°)	Nut axial clearance
9.525	0.375	0.635	0.025	0.003175	0.02-0.03mm
9.525	0.375	1.27	0.05	0.00635	0.02-0.03mm
9.525	0.375	1.5875	0.0625	0.0079375	0.02-0.03mm
9.525	0.375	2.1167	0.083	0.0105835	0.02-0.03mm
9.525	0.375	2.54	0.1	0.0127	0.02-0.03mm
9.525	0.375	3.175	0.125	0.015875	0.02-0.03mm
9.525	0.375	4.232	0.167	0.02116	0.02-0.03mm
9.525	0.375	5.08	0.2	0.0254	0.02-0.03mm
9.525	0.375	6.35	0.25	0.03175	0.02-0.03mm
9.525	0.375	9.525	0.375	0.047625	0.02-0.03mm
9.525	0.375	10.16	0.4	0.0508	0.02-0.03mm
9.525	0.375	12.7	0.5	0.0635	0.02-0.03mm
9.525	0.375	25.4	1	0.127	0.02-0.03mm
6.35	0.25	25.4	1	0.127	0.02-0.03mm

Dimensions

High Torque NEMA 23 Hybrid Stepper Motor Integrated 57mm 0

Screw Type

High Torque NEMA 23 Hybrid Stepper Motor Integrated 57mm 1

Dynamic thrust curve

High Torque NEMA 23 Hybrid Stepper Motor Integrated 57mm 2
