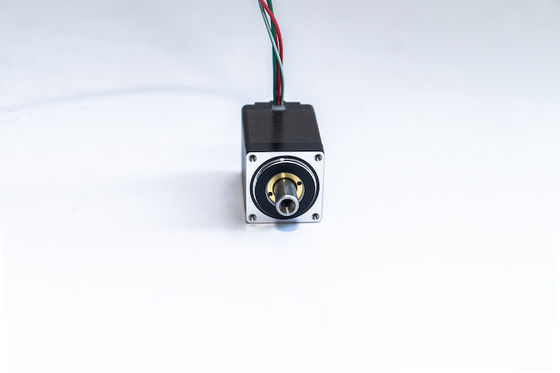

Name: Permanent Magnet Non Captive Linear Stepper Motor For Linear Motion
Brand: changzhou hontru motor co.ltd
SKU: HC86BLF
Availability: InStock

MOQ:	1 set
Price:	Negotiation
Standard Packaging:	Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period:	5-10 working days
Payment Method:	T/T, PayPal, Western Union
Supply Capacity:	10000pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, China

Brand Name

Hontru

Certification

CE ISO RoHS

Model Number

HC86BLF

Document

Product Brochure PDF

Name:

28mm Linear Stepper Motor

Phase Number:

Step Angle Accuracy IP Rating:

±5%

Certification:

Insulation Level:

RoHS CE ISO9001 B(130℃)

Operating Ambient Temperature:

-20℃~ +50℃

Highlight:

non captive linear stepper motor

permanent magnet linear stepper motor

stepper motor for linear motion

Product Description

28mm Linear Stepper Motor

Phase number	2
Step angle accuracy IP rating	±5%
Certification	40
Insulation level	RoHS CE ISO9001 B(130℃)
Operating ambient temperature	-20℃~ +50℃

Motor parameters

Motor Type	Body L(mm)	Holding torque(N.m)	Rated current(A)	Resistance(Ω)	Rated inductance(mH)	Rated voltage(V)
28	34mm	0.06	1A	2.1Ω	1.4mH	2.1V
	45mm	0.12	1A	3Ω	2.2mH	3V
	51mm	0.18	1A	3.5Ω	3mH	3.5V

Screw parameters :

diameter(mm)	Screw diameter(inch)	Lead(mm)	Lead(inch)	Step Length 1.8°(°)	Nut axial clearance
4.77	0.188	4.76 * 0.635	0.025	0.003175	0.02-0.03mm
4.77	0.188	4.76 * 1.27	0.05	0.00635	0.02-0.03mm
4.77	0.188	4.76 * 2.54	0.1	0.0127	0.02-0.03mm
4.77	0.188	4.76 * 5.08	0.2	0.0254	0.02-0.03mm
4.77	0.188	4.76*10.16	0.4	0.0508	0.02-0.03mm

Dimensions

Permanent Magnet Non Captive Linear Stepper Motor For Linear Motion 0

Screw Type

Permanent Magnet Non Captive Linear Stepper Motor For Linear Motion 1

Dynamic thrust curve
