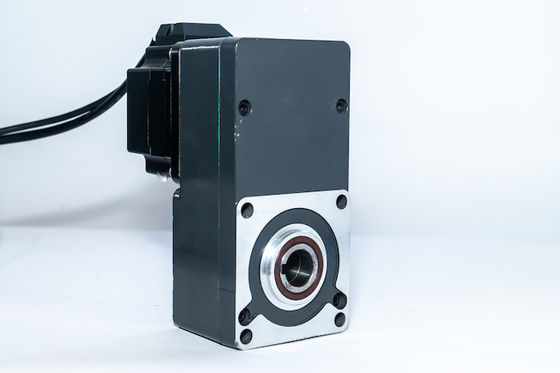

Name: 160VDC 90mm Brushless DC Electric Motor 220W Geared Bldc Motor
Brand: changzhou hontru motor co.ltd
SKU: HC86BLF
Availability: InStock

MOQ:	1 set
Price:	Negotiation
Standard Packaging:	Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period:	5-10 working days
Payment Method:	T/T, PayPal, Western Union
Supply Capacity:	10000pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, China

Brand Name

Hontru

Certification

CE ISO RoHS

Model Number

HC86BLF

Document

Product Brochure PDF

Name:

90mm Reduction Motor

Gearbox Housing Material:

Metal

Backlash:

≤1.2°

Radial Clearance:

≤0.05mm

Axial Clearance::

≤0.3mm

Highlight:

Brushless Electric Motor 220W

160VDC Brushless Electric Motor

Brushless DC Electric Motor 220W

Product Description

90mm Reduction Motor

Features:

◆ Low noise
◆ Low fever
◆ Smooth operation
◆ Good acceleration performance

1. Gearbox housing material: metal
2. Backlash: ≤1.2°
3. Radial clearance: ≤0.05mm
4. Axial clearance: ≤0.3mm
5. The allowable torque of the gearbox must not be exceeded during use

Gearbox technical parameters:

Specification	Stage Level	Speed Ratio	60	90	115	140
Rated Output Torque (Nm)	L1	3	36	130	208	342
		4	48	140	290	542
		5	60	160	330	650
		6	58	120	240	410
		7	50	140	300	550
		8	45	130	230	450
		10	40	100	230	450
	L2	15	36	130	208	342
		20	48	140	290	542
		25	60	160	330	650
		30	55	150	310	600
		35	50	140	300	550
		40	45	120	230	500
		50	60	160	330	650
		60	55	150	310	600
		70	50	140	300	550
		80	45	110	230	410
		100	40	100	230	450
Scram Torque (Nm)	L1＊L2	3~100	2.5times rated output torque
Rated Input Speed (RPM)	L1＊L2	3~100	5000	4000	4000	3000
Maximum Input Speed (RPM)	L1＊L2	3~100	10000	8000	8000	6000
Return High Precision Clearance (Arc/Min)	L1	3~10	≤3	≤3	≤3	≤3
Return High Precision Clearance (Arc/Min)	L2	15~100	≤5	≤5	≤5	≤5
Return Standard Clearance (Arc/Min)	L1	3~10	≤5	≤5	≤5	≤5
Return Standard Clearance (Arc/Min)	L2	15~100	≤8	≤8	≤8	≤8
Torsional Rigidity (NM/arcmin)	L1＊L2	3~100	7	14	25	50
Maximum Radial Force (N)	L1＊L2	3~100	1200	2450	4000	9000
Maximum Axial Force (N)	L1＊L2	3~100	1 050	2200	4000	8300
Work Efficiency (%)	L1	3~10	≥97	≥97	≥97	≥97
Work Efficiency (%)	L2	15~100	≥94	≥94	≥94	≥94
Working Life (H)	L1＊L2	3~100	≥20000
Ambient Temperature (℃)	L1＊L2	3~100	-10℃ ~＋45℃
Lubrication Mode	L1＊L2	3~100	Lifetime Lubrication
Class Of Protection	L1＊L2	3~100	IP65
Mounting Direction	L1＊L2	3~100	Any Direction
Noise (db)	L1＊L2	3~100	≤60	≤64	≤67	≤72
Moment Of Inertia Part (kg·cm²)	L1	3	0.16	0.61	3.25	9.21
		4	0.14	0.48	2.74	7.54
		5	0.13	0.47	2.71	7.42
		6	0.13	0.45	2.67	7.34
		7	0.13	0.45	2.62	7.25
		8	0.13	0.45	2.61	7.19
		10	0.13	0.45	2.57	7.14
	L2	15	0.03	0.13	0.47	7.03
		20	0.03	0.13	0.47	2.71
		25	0.03	0.13	0.47	2.71
		30	0.03	0.13	0.47	2.71
		35	0.03	0.13	0.47	2.71
		40	0.03	0.13	0.47	2.71
		50	0.03	0.13	0.47	2.71
		60	0.03	0.13	0.47	2.71
		70	0.03	0.13	0.44	2.57
		80	0.03	0.13	0.44	2.57
		100	0.03	0.13	0.44	2.57
