MOQ:	1 set
Price:	Negotiation
Standard Packaging:	Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Period:	5-10 working days
Payment Method:	T/T, PayPal, Western Union
Supply Capacity:	10000pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, China

Brand Name

Hontru

Certification

CE ISO RoHS

Model Number

34HS98-5004

Document

Product Brochure PDF

Name:

42mm Nema 17 1.8°Planet Gear Stepping Motor

Housing Material:

Metal

Bearing At Output:

Ball Bearings

Radial Play Of Shaft:

≤0.04mm

Thrust Play Of Shaft:

≤0.3mm

Backlash,at No-load:

≤3°

Highlight:

stepper motor gearbox nema 17

nema 17 stepper motor planetary gearbox

geared stepper motor nema 17

Product Description

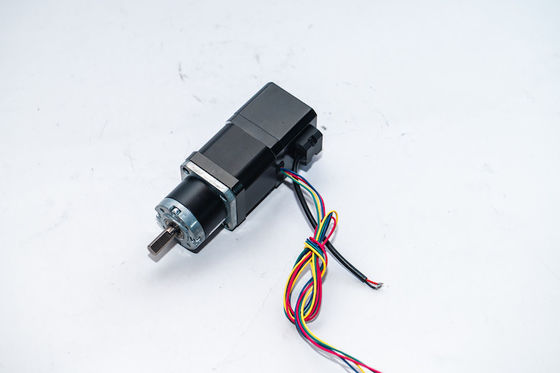

42mm Nema 17 1.8°Planet Gear Stepping Motor

Specification

Housing Material	Metal
Bearing at output	Ball Bearings
Radial play of shaft	≤0.04mm
Thrust play of shaft	≤0.3mm
Backlash,at no-load	≤3°

Electrical Specifications

Model	Length L mm	A/Phase	Ω/Phase	mH/Phase	Holding Torque N .cm	Rotor Inertia g.cm²	Lead Wire NO.	Motor weight g
17HS34-1304	34	1.3	2.4	2.8	28	34	4	220
17HS34-0406	34	1.7	1.2	1.8	28	34	4	220
17HS40-1304	40	1.3	2.5	5.0	40	54	4	280
17HS40-1704	40	1.7	1.5	2.8	40	54	4	280
17HS48-1304	48	1.3	3.2	5.5	52	68	4	350
17HS48-1704	48	1.7	1.8	3.2	52	68	4	350
17HS60-1704	60	1.7	2.3	4.6	70	80	4	480
17HS60-2304	60	2.3	1.4	2.5	70	80	4	480

PLANET GEAR Electrical Specifications

Number of gear trains		Level 1	Level 2	Level 3	Level 4
Reduction ratio		3.7 ,5.2	14 ,19, 27	51,71,100,139	189,264,369
Reducer length(L2)	mm	31	38.5	48.5	55.5
Rated allowable load	N.m	0.3	1	2	3
Instantaneous allowable load	N.m	0.9	3	6	9
Efficiency	%	90	81	73	66
Weight	g	191	207	288	312

Mechanical Dimensions unit=mm
